Finding the S300 IP Address

To find the IP address on a PAX S300, you need to access the menu.
Step 1:

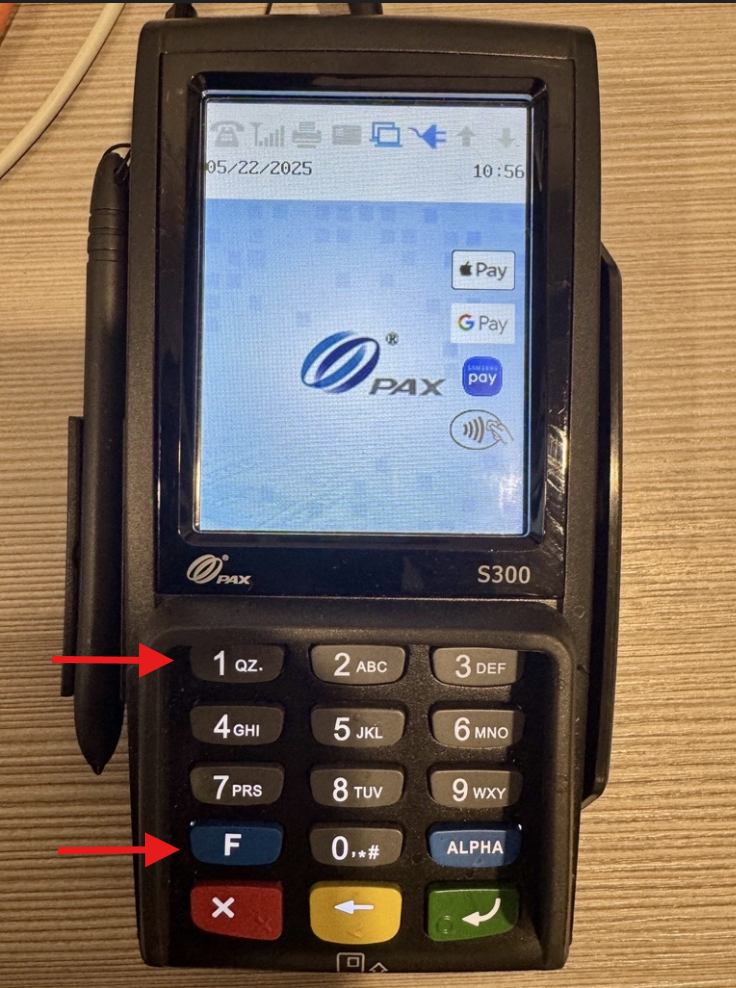

By pressing "Function" and "1" simultaneously.

Step 2:

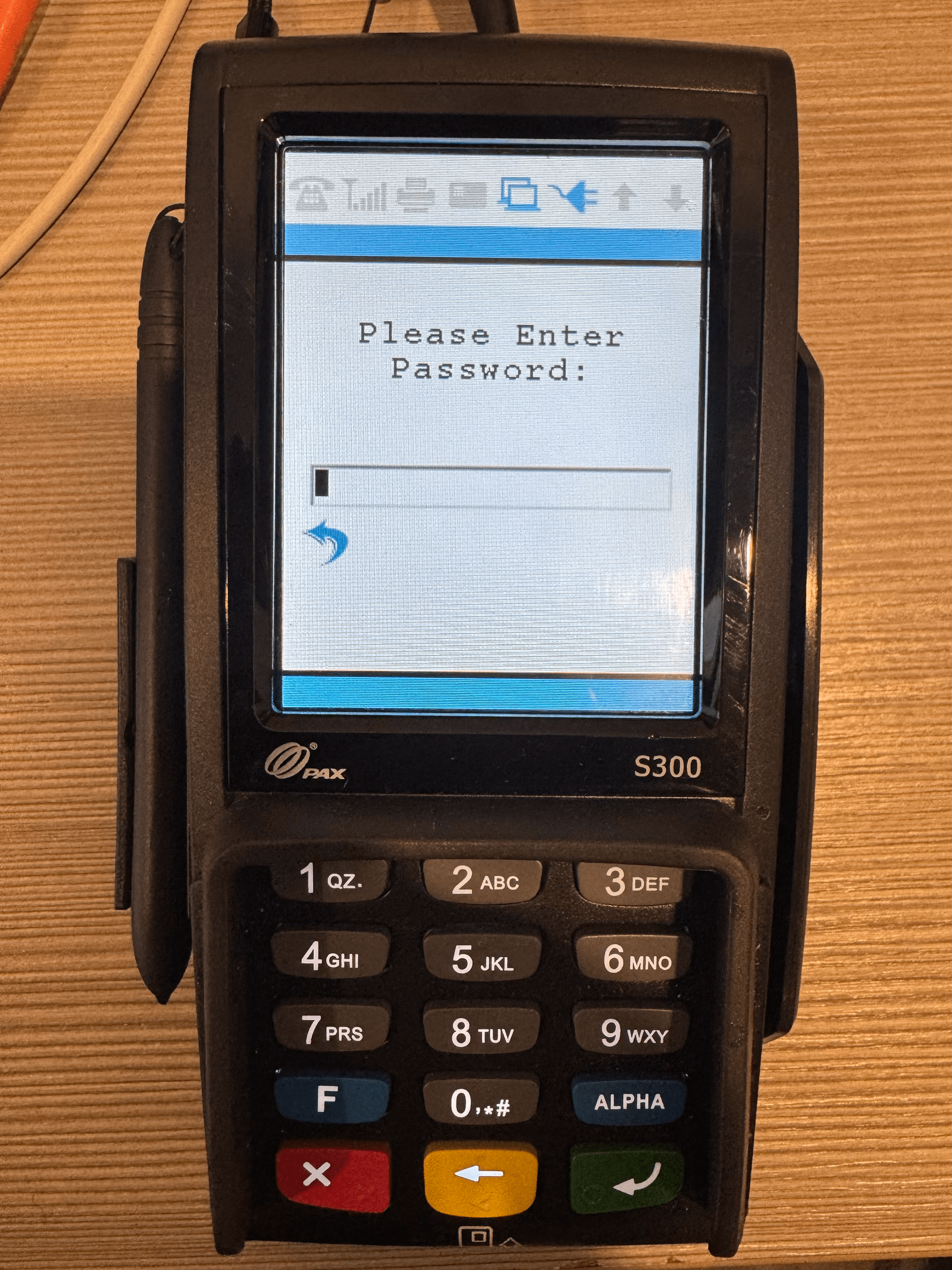

Enter the password: Todays date in this format (01012025)

Step 3:

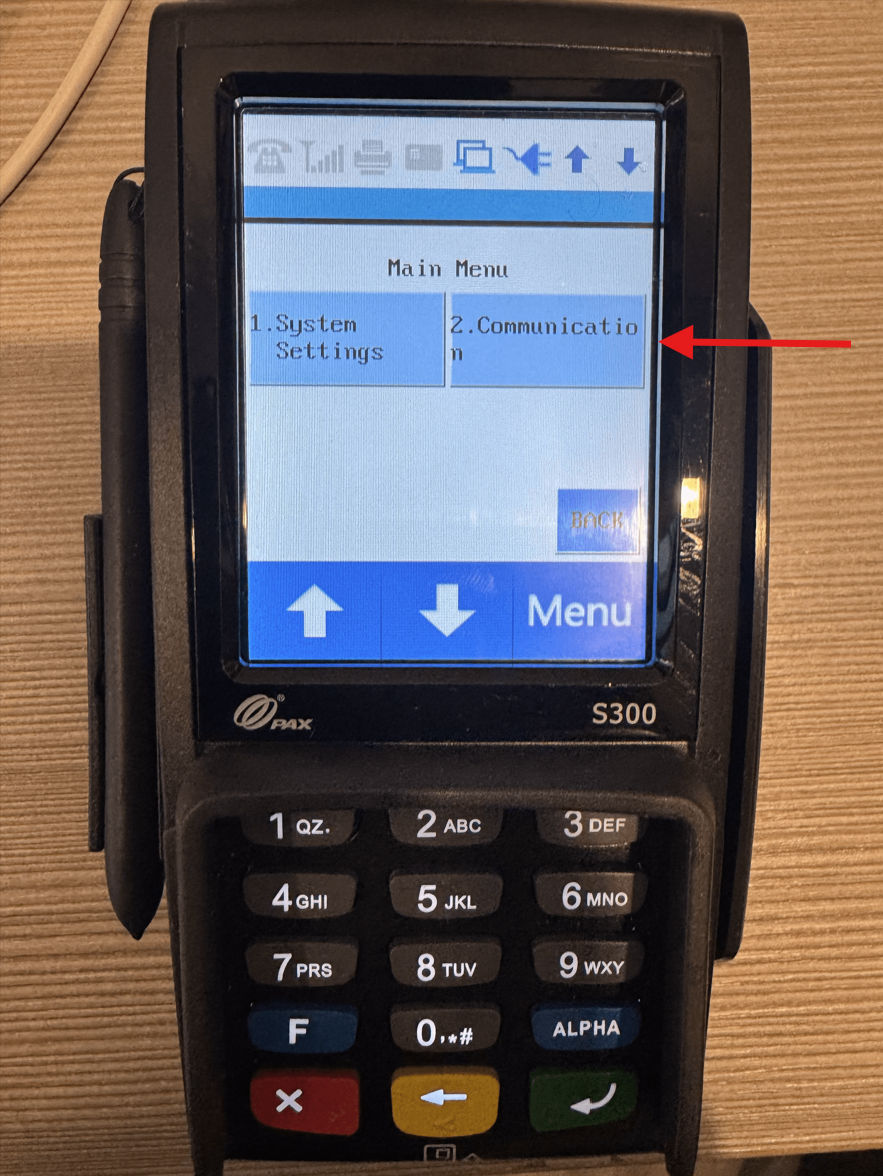

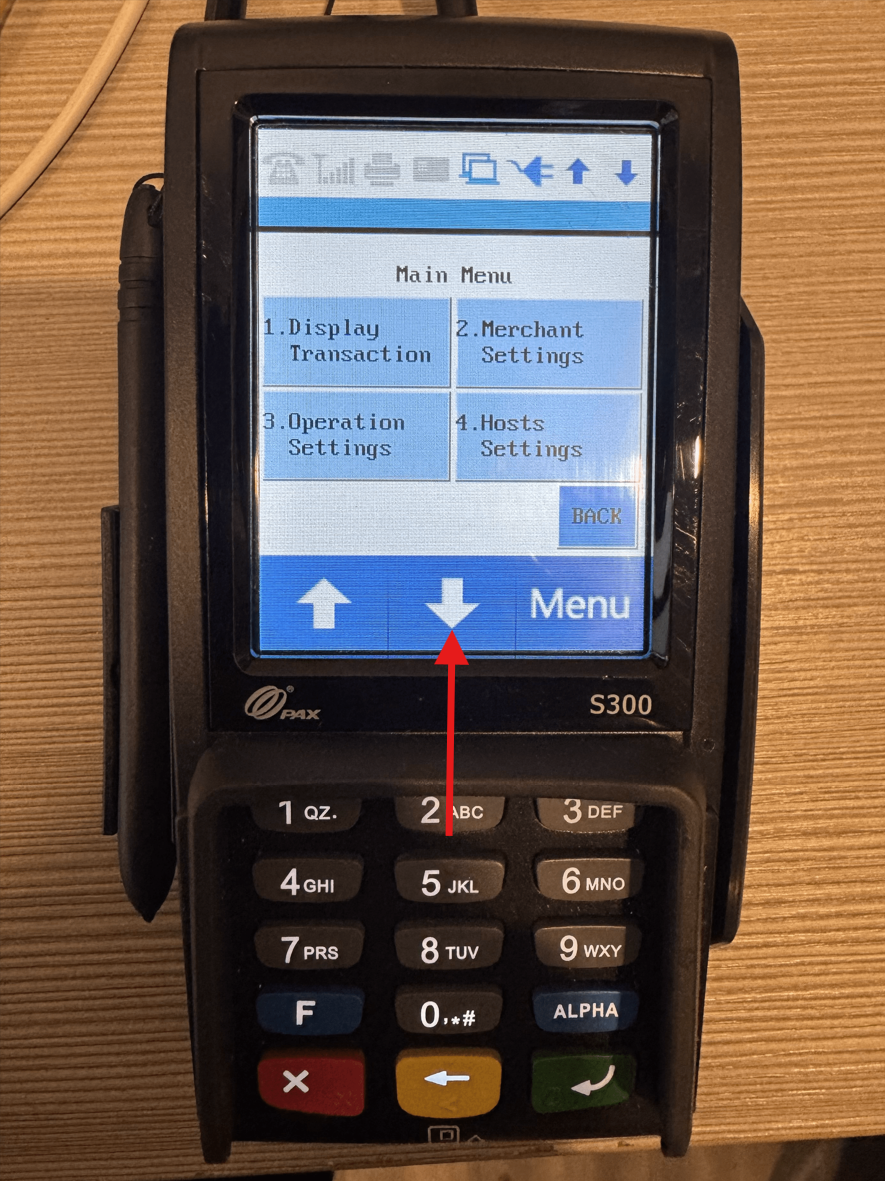

Navigate with the down arrow to "Communication"

Step 4:

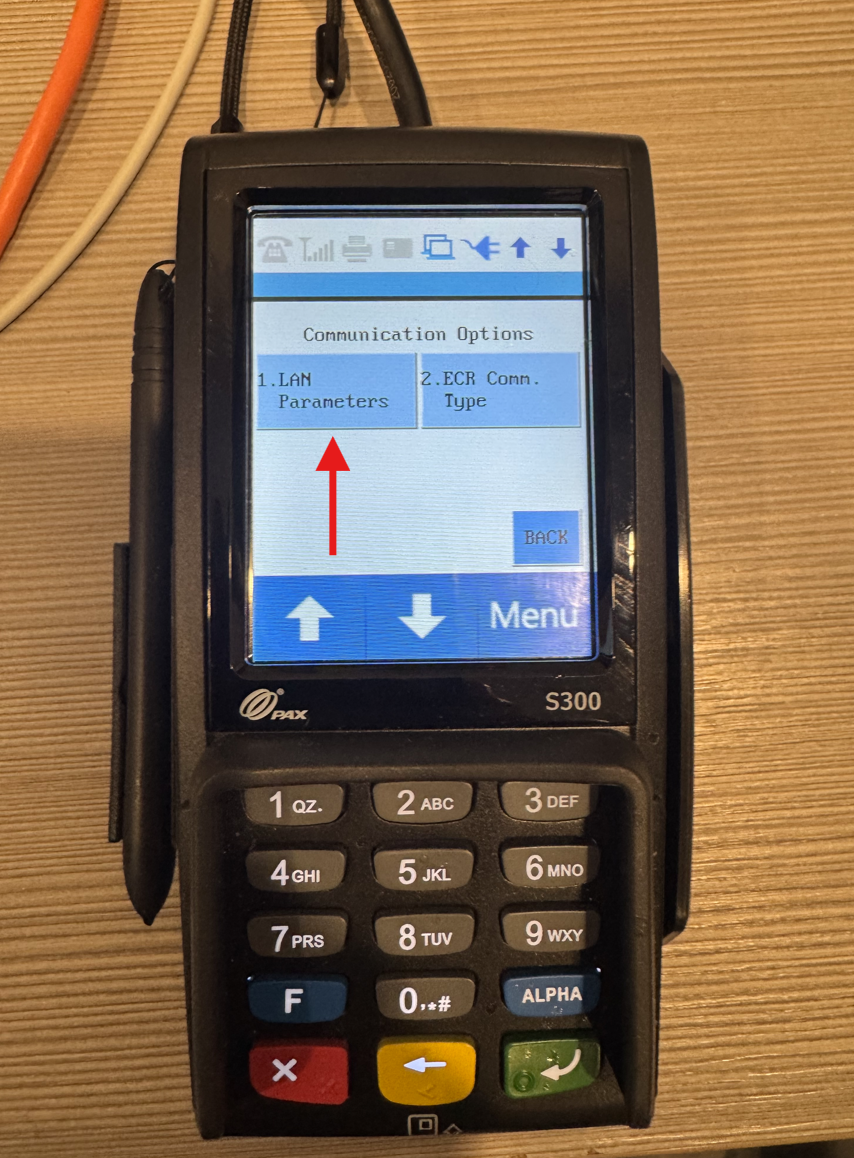

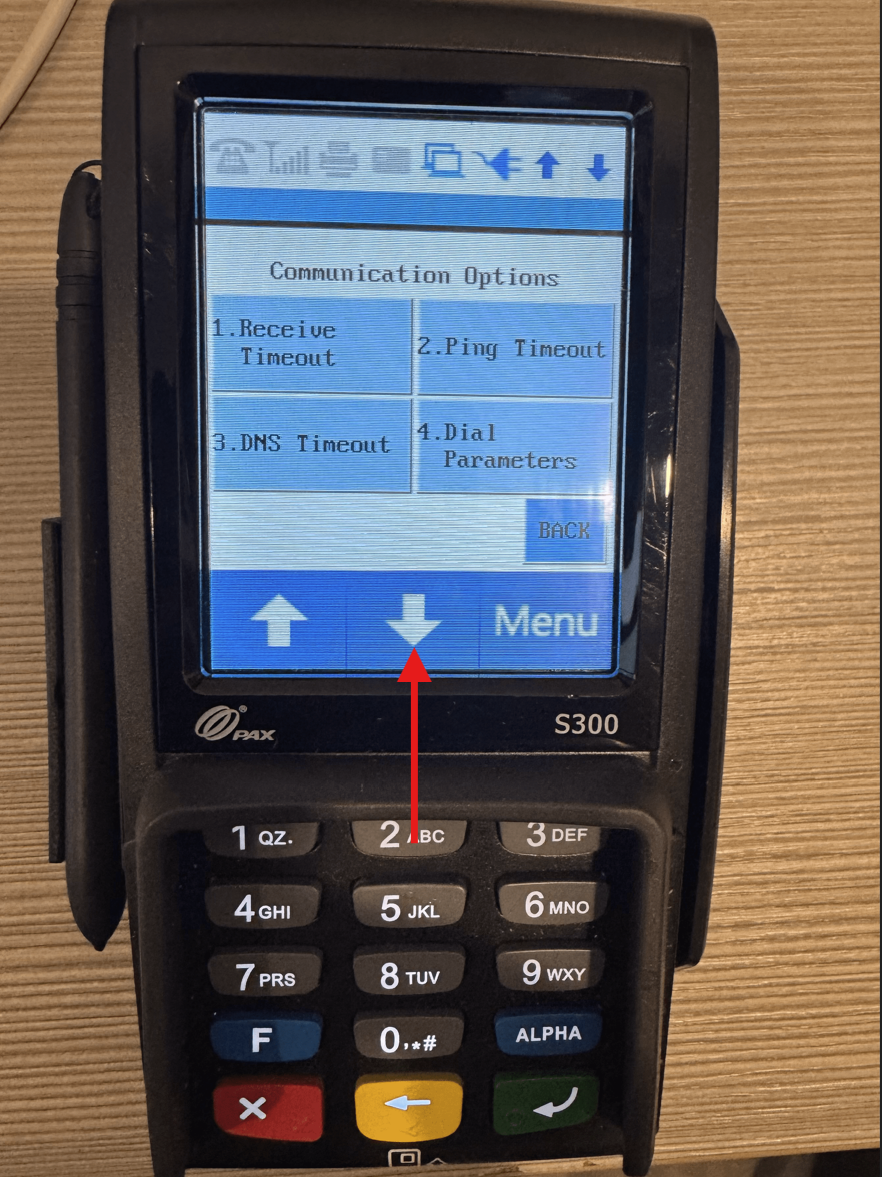

Navigate with the down arrow until you reach "LAN Parameters"

Step 5:

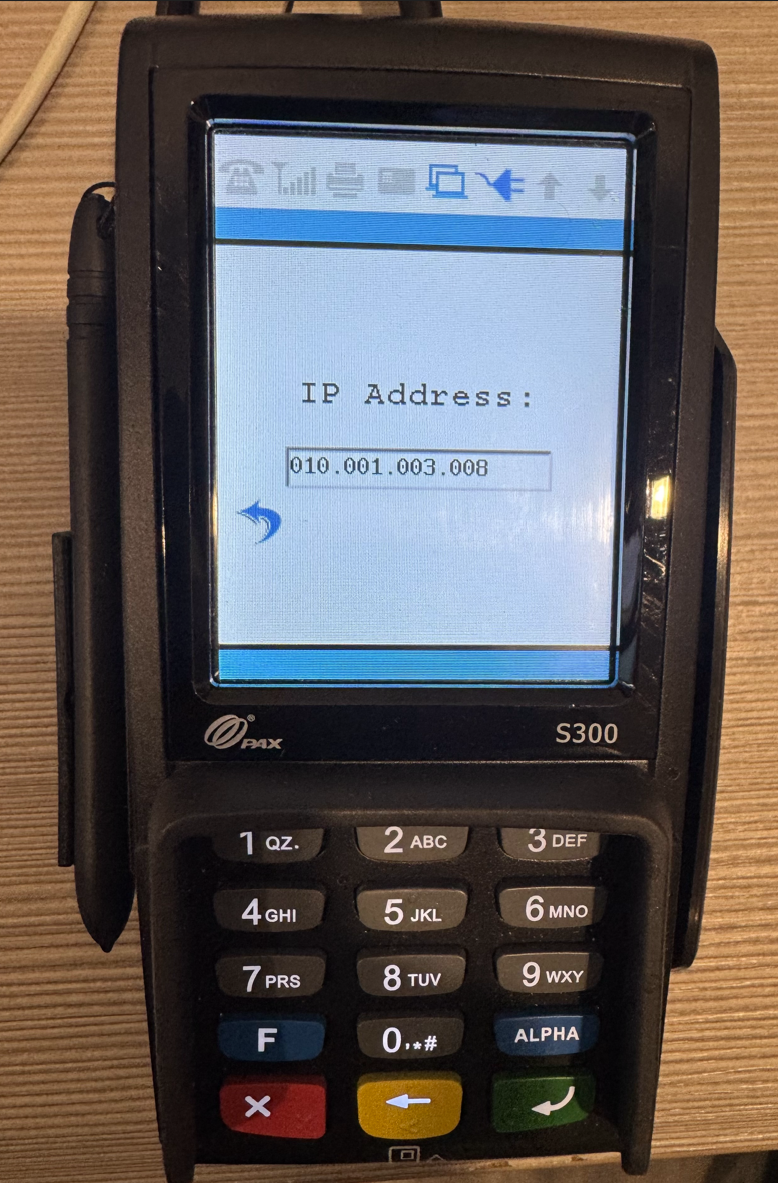

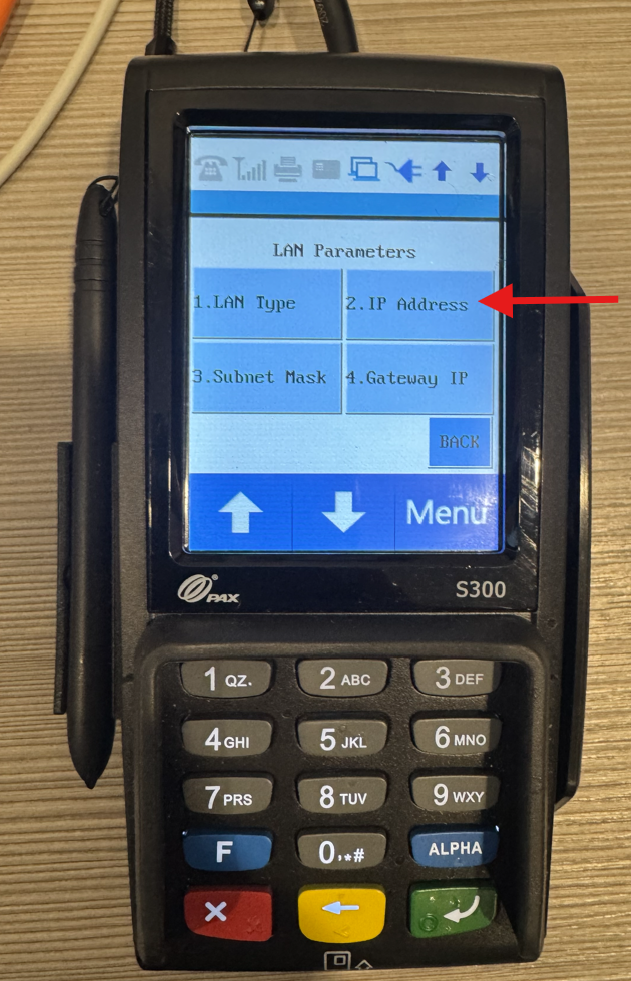

Hit "IP Address" where the IP address will be displayed on the screen;

Final Step:

Notate IP address like below -

• Access the menu: Press "Function" and "1" at the same time.
• Enter password: Input the password, typically the current date in MMDDYYYY format.
• Navigate to communication settings: Select "Communication".
• Access LAN parameters: Choose "LAN Parameters".
• View IP address: Select "IP Address" to see the assigned IP address.
